Απομόνωση (isolator) βάσης BENTEL FC450IB
With all the features of the 5B Universal Base the FC450IB Isolator Base allows any FC400 Series Detectors to be upgraded to incorporate bidirectional short circuit isolation.
Implemented on every detector, the FC450IB can ensure that no detector is lost on a system in the event of an open or short circuit.
Alternatively, the FC450IB can be implemented between detectors to provide short circuit isolation according to EN54.
The FC450IB can be used as a stand alone line isolator fitted between call points and other ancillaries.
19.80€18.00€Προσθήκη στο καλάθι
Σειρήνα addressable BENTEL FC430SAM
The FC430SAM Sounder Addressable Module is a FireClass addressable device which may be fitted to the FC430SB Sounder Bases to enable the FireClass 500 Control Panel to communicate with and control thIs sounder base, without the need for a detector, effectively turning the combination into an addressable loop powered sounder.
33.00€30.00€Προσθήκη στο καλάθι
34.10€31.00€Προσθήκη στο καλάθι
Αναλογικός – addressable θερμικός ανιχνευτής BENTEL FC460H
Σταθερής θερμοκρασίας, με οπτική γωνία 360ο μέσω 2 Leds, ενσωματωμένο test switch, δυνατότητα απομακρυσμένου ελέγχου (remote Led option).
• Διαστάσεις: 109 Χ 43mm
• Θερμοκρασία σε λειτουργία: -25ο έως +79ο C (-40ο έως +90ο για περιορισμένο χρόνο λειτουργίας)
• Θερμοκρασία αποθήκευσης: -40ο έως +80ο C.
• Πιστοποίηση: ΕΝ54 pt 5
34.10€31.00€Προσθήκη στο καλάθι
40.70€37.00€Προσθήκη στο καλάθι
Isolator module BENTEL
The FC410LI Line Isolator Module is designed to be used on the FireClass addressable loop control panel. It monitors the line condition and when detecting a short circuit will isolate the affected section whilst allowing the rest of the addressing circuit to function normally.
The purpose of the FC410LI Line Isolator Module is to ensure that, on a looped addressable system, no short circuit fault can disable more detection devices than would be lost on a conventional non-addressable fire circuit.
40.70€37.00€Προσθήκη στο καλάθι
40.70€37.00€Προσθήκη στο καλάθι
Αναλογικός – addressable φωτοηλεκτρικός οπτικός ανιχνευτής καπνού BENTEL FC460P
Με οπτική γωνία 360ο μέσω 2 Leds, ενσωματωμένο test switch, δυνατότητα απομακρυσμένου ελέγχου.
• Διαστάσεις : 109 Χ 43mm
• Θερμοκρασία σε λειτουργία: -20ο έως +79ο C. • Θερμοκρασία αποθήκευσης: -40ο έως +80ο C.
• Υγρασία: 95%
. • Πιστοποίηση: ΕΝ54 pt 7.
40.70€37.00€Προσθήκη στο καλάθι
45.10€41.00€Προσθήκη στο καλάθι
Sounder base BENTEL FC430SB
The FC430SB Loop Power Sounder Base provides an additional sounder function on the FireClass 500 control panel.
The FC430SB Loop Powered Sounder Base requires an associated FC400 series detectors, FC430SAB or FC430SAM module in order to operate, as it uses the address of the detector or the module that is fitted to it. The configuration FC430SB with detectors allows only to activate the sounder by his associated detector and could not be activated by zones. For this case you have to use the FC430SAM and FC430SAB.
The FC430SB does not support the detector FC400P.
45.10€41.00€Προσθήκη στο καλάθι
Μπουτόν αναγγελίας φωτιάς BENTEL FC420CP
FC420CP Addressable Break Glass Callpoint is designed to monitor and signal the condition of a switch contact that is operated by activating the break glass element.
The glass element may be replaced with the deformable plastic element 515.001.127 which allows the FC420CP device to be reset, using the key supplied, after alarm activation.
47.52€43.20€Προσθήκη στο καλάθι
49.50€45.00€Προσθήκη στο καλάθι
Αναλογικός –addressable διπλός MULTI-SENSOR θερμικός + ορατού καπνού BENTEL FC460PH
Με οπτική γωνία 360ο μέσω 2 Leds, ενσωματωμένο test switch, δυνατότητα απομακρυσμένου ελέγχου.
• Διαστάσεις : 109 Χ 43mm
• Θερμοκρασία σε λειτουργία:-20ο έως+79οC.
• Θερμοκρασία αποθήκευσης:-40οέως+80ο C.
• Υγρασία: 95%. • Πιστοποίηση: ΕΝ54 pt 7 & ΕΝ54 pt 5 .
49.50€45.00€Προσθήκη στο καλάθι

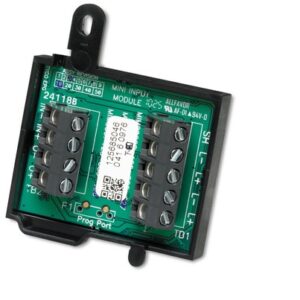

Mini πλακέτα εισόδου BENTEL FC410MIM
The FC410MIM Mini Addressable Contact Input Module is designed to monitor external equipments. The FC410MIM provides one input and can be configured to monitor normally open or normally closed inputs.
47.85€43.50€Προσθήκη στο καλάθι

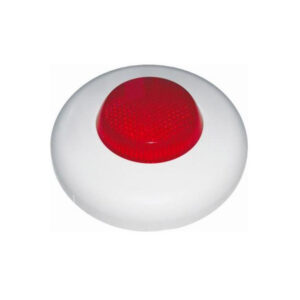

Loop powered beacon (σειρήνα) BENTEL FC430SAB
The FC430SAB is a FireClass Addressable Beacon that fits into the 5B Standard Base. Alternatively the FC430SAB may be fitted to the FC430SB, Sounder Base to enable the FireClass 500 Control Panel to communicate with and control this sounder bases and also provide a Flashing Beacon effectively turning the FC430SB into a combined addressable loop powered sounder and beacon.
61.60€56.00€Προσθήκη στο καλάθι

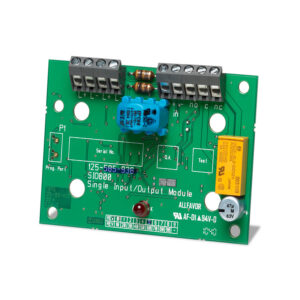

Πλακέτα 1 εισόδου / 1 εξόδου BENTEL FC410SIO
The FC410SIO Single Input Output Module provides one volt-free relay changeover contact and one input to monitor external equipment. The input can be configured to monitor normally open or normally closed inputs.
92.40€84.00€Προσθήκη στο καλάθι

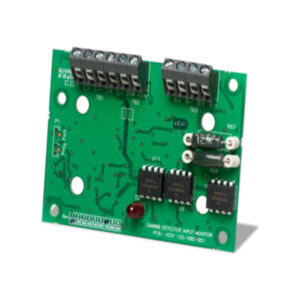

Πλακέτα σύνδεσης αναλογικών ανιχνευτών BENTEL
The Addressable FC410DIM provides the ability to connect and interface up to two zones of 24V d.c. 2-wire conventional detectors to the FireClass 500 Control Panel.
The conventional detection circuit is powered from an external 24V d.c. supply and is reset by the FireClass 500 control panel.
The FC410DIM monitors the status and wiring to the detectors and the external 24V d.c.
110.00€100.00€Προσθήκη στο καλάθι

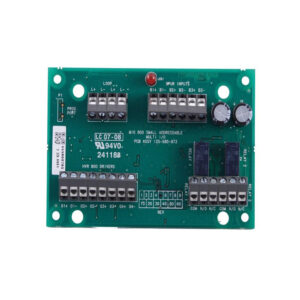

Πλακέτα 3 εισόδων/ 4 εξόδων BENTEL FC410MIO
The FC410MIO Multi I/O Module has three inputs and four low power outputs. The inputs can monitor external equipments and can be configured to monitor normally open or normally closed inputs. All four low power outputs can drive a self-powered high voltage relay HVR800. By disabling the low voltage outputs three and four, the outputs one and two can be used as volt-free relay changeover contacts (2 A @ 24 Vdc).
132.00€120.00€Προσθήκη στο καλάθι

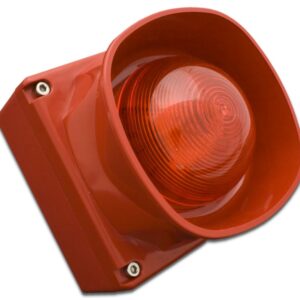

Φαροσειρήνα IP66 (εξωτερικού χώρου) BENTEL FC410LPAV
The FC410LPAV is a red loop supplied addressable sounder /beacon suitable for outdoor use (IP65).
It’s low consumption and it’s equipped with an embedded isolator. It’s possible to select 16 tones, 2 volumes and 2 flashing frequencies via FireClass 500 Console software.
138.60€126.00€Προσθήκη στο καλάθι

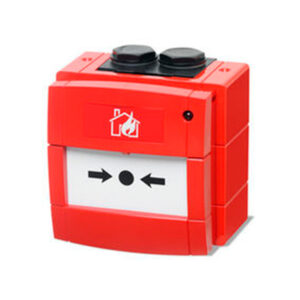

Εξωτερικό μπουτόν αναγγελίας φωτιάς BENTEL FC421CP
FC421CP Addressable Break Glass Callpoint is designed to monitor and signal the condition of a switch contact that is operated by activating the break glass element. The FC421CP is fitted into a standard weatherproof break glass callpoint housing.
The glass element may be replaced with the deformable plastic element 515.001.127 which allows the FC421CP device to be reset, using the key supplied, after alarm activation.
192.50€175.00€Προσθήκη στο καλάθι
231.00€210.00€Προσθήκη στο καλάθι

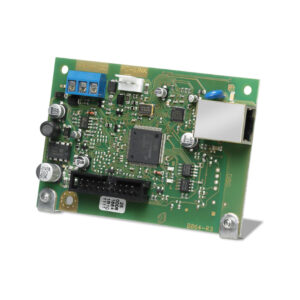

Internet interface BENTEL FC500IP
The FC500IP is an IP Module which is used to connect control units in the FireClass 500 range to a LAN.
The same procedures may be performed using the FireClass Graphic Maps console application, either through the serial port or the network.
With a public IP address, it is also possible to manage and monitor the control unit form anywhere in the world, as long as you have access to the Internet.
231.00€210.00€Προσθήκη στο καλάθι
